Ethylene Absorber - EA

Key Features Key Benefits Indoor Unit Outdoor Unit Brochure

All-in-One Climate Control
Integrated cooling, heating, ventilation, and humidification in a single compact unit.

Smart PLC Automation
Intelligent climate management with real-time monitoring and precise control.

Energy-Efficient Fresh Air Management
Automatic utilization of outdoor air whenever ambient conditions are suitable.

Flexible Capacity Range
Multiple models for different storage capacities and project requirements.

Technical Data Table

Technical Data	PAC 250	PAC 500	PAC 750	PAC 1000	PAC 1250	PAC 1500
Cooling Capacity	30,90 kW.	49,70 kW.	74,60 kW.	102,00 kW.	136,00 kW.	162,00 kW.
Air Flow Capacity	21.135 m³/h	45.561 m³/h	67.375 m³/h	89.833 m³/h	109.483 m³/h	132.997 m³/h
Evaporation / Condensation	-3°C / +40℃	-3°C / +40℃	-3°C / +40℃	-3°C / +40℃	-3°C / +40℃	-3°C / +40℃
Compressor Model	BOCK HGX44e/475-4S	BOCK HGX44e/770-4S	BOCK HGX56e/1155-4S	BOCK HGX66e/1540-4S	BOCK HGX66e/2070-4S	BOCK HGX88e/2400-4S
Refrigerant	R404A	R404A	R404A	R404A	R404A	R404A
Condenser Model	EKV60 (2XØ500)	EKV106 (2XØ630)	EKV140 (3XØ630 FAN)	EKV180 (3XØ630 FAN)	EKV70X3 (6XØ630 FAN)	EKV82X3 (6XØ630 FAN)
Evaporator Fan Diameter / Quantity	Ø615 mm / 2 pcs.	Ø615 mm / 3 pcs.	Ø785 mm / 3 pcs.	Ø785 mm / 4 pcs.	Ø785 mm / 5 pcs.	Ø785 mm / 6 pcs.
Storage Capacity	250 ton	500 ton	750 ton	1.000 ton	1.250 ton	1.500 ton
Electronic Control Unit	PLC	PLC	PLC	PLC	PLC	PLC
Heating Type	Electrical With Water (Optional)	Electrical With Water (Optional)	Electrical With Water (Optional)	Electrical With Water (Optional)	Electrical With Water (Optional)	Electrical With Water (Optional)
Humidity Level	80-98 %RH	80-98 %RH	80-98 %RH	80-98 %RH	80-98 %RH	80-98 %RH
Power Consumption	400 V / 3 Phs / 50 Hz	400 V / 3 Phs / 50 Hz	400 V / 3 Phs / 50 Hz	400 V / 3 Phs / 50 Hz	400 V / 3 Phs / 50 Hz	400 V / 3 Phs / 50 Hz
Exhaust air hatches	2 pcs.	4 pcs.	4 pcs.	4 pcs.	6 pcs.	6 pcs.

Extended Storage Life
It helps minimize sprouting, dehydration, and product losses during long-term storage.
Preserved Product Quality
Stable temperature and humidity maintain freshness, appearance, and market value.
Reduced Operating Costs
Intelligent control strategies optimize energy consumption throughout the storage period.

Heating, cooling, ventilation, and humidification functions
Free cooling (using outside air when required)
Aluminum fins, copper pipes, AC fans
Tested at 35 bar pressure
Adiabatic pad
Electrical heater

Options:

Stainless steel pipes
Epoxy, hydrophilic or Blygold® coated aluminum fins
Stainless steel casing
Special alloy axial fans

Semi-hermetic reciprocating compressor
Air-cooled condenser
Delivered with 6 bar nitrogen holding charge
Ready-to-install electrical panel including automatic control components.

Options:

Hermetic scroll compressor
Frequency inverter
Water-cooled condenser

Gallery

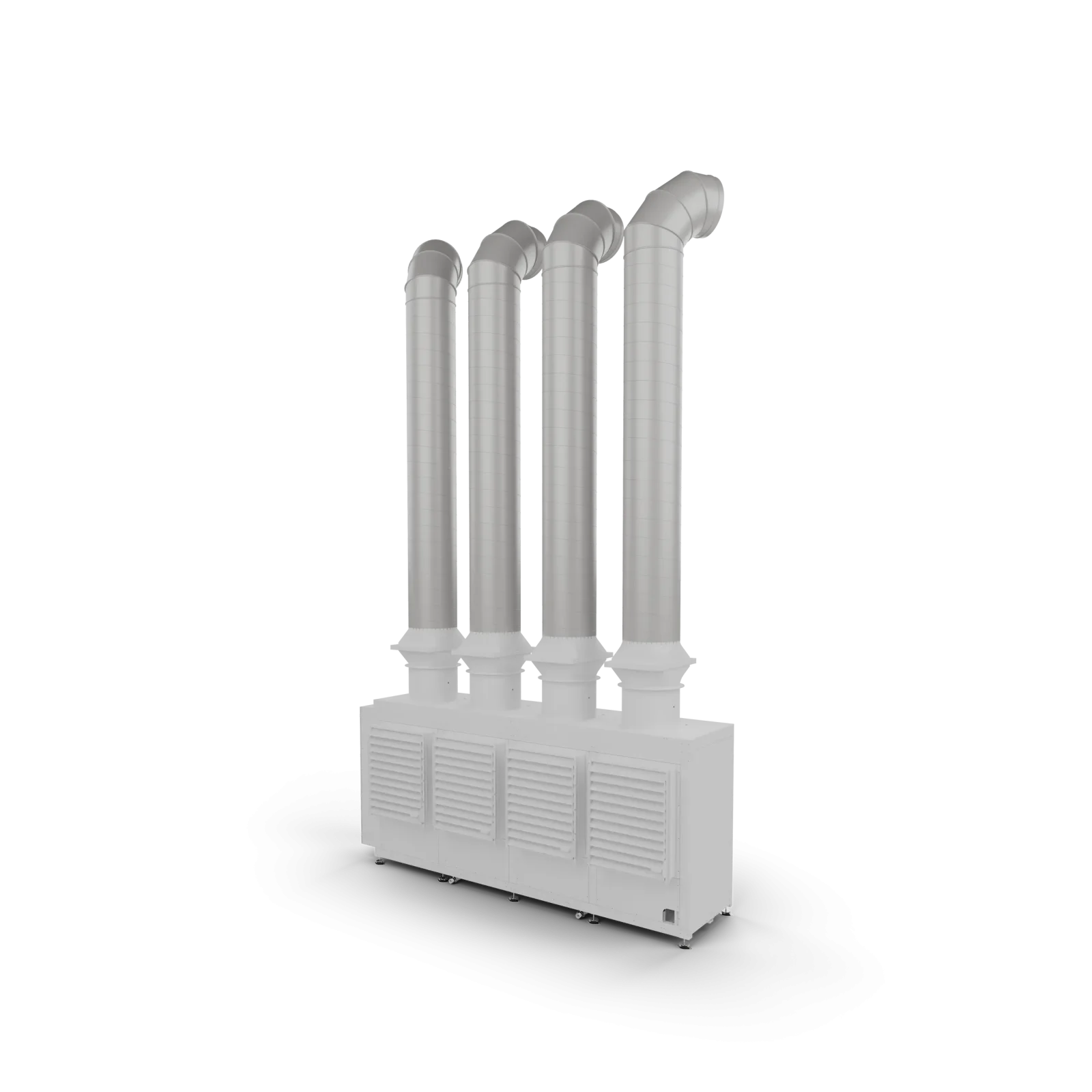

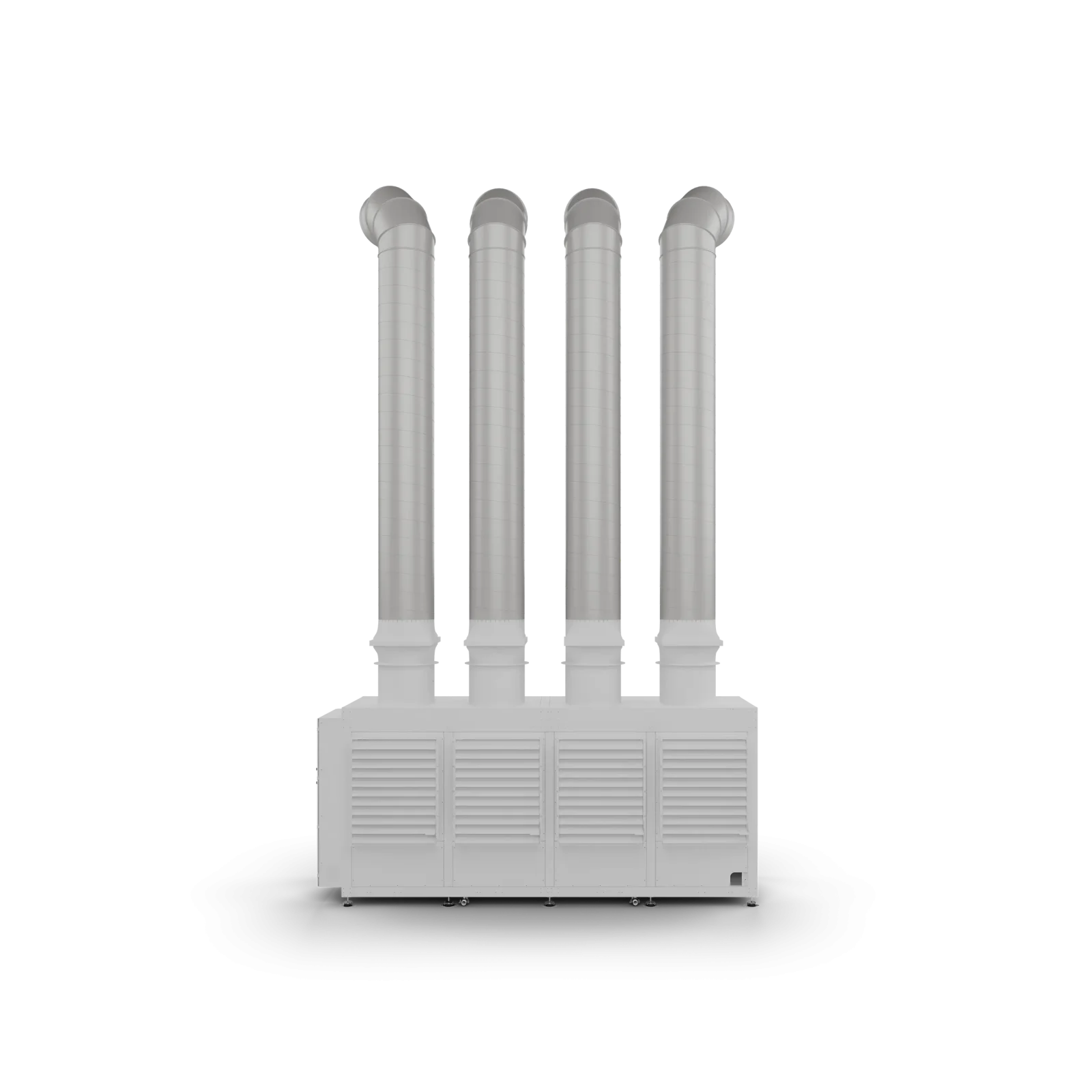

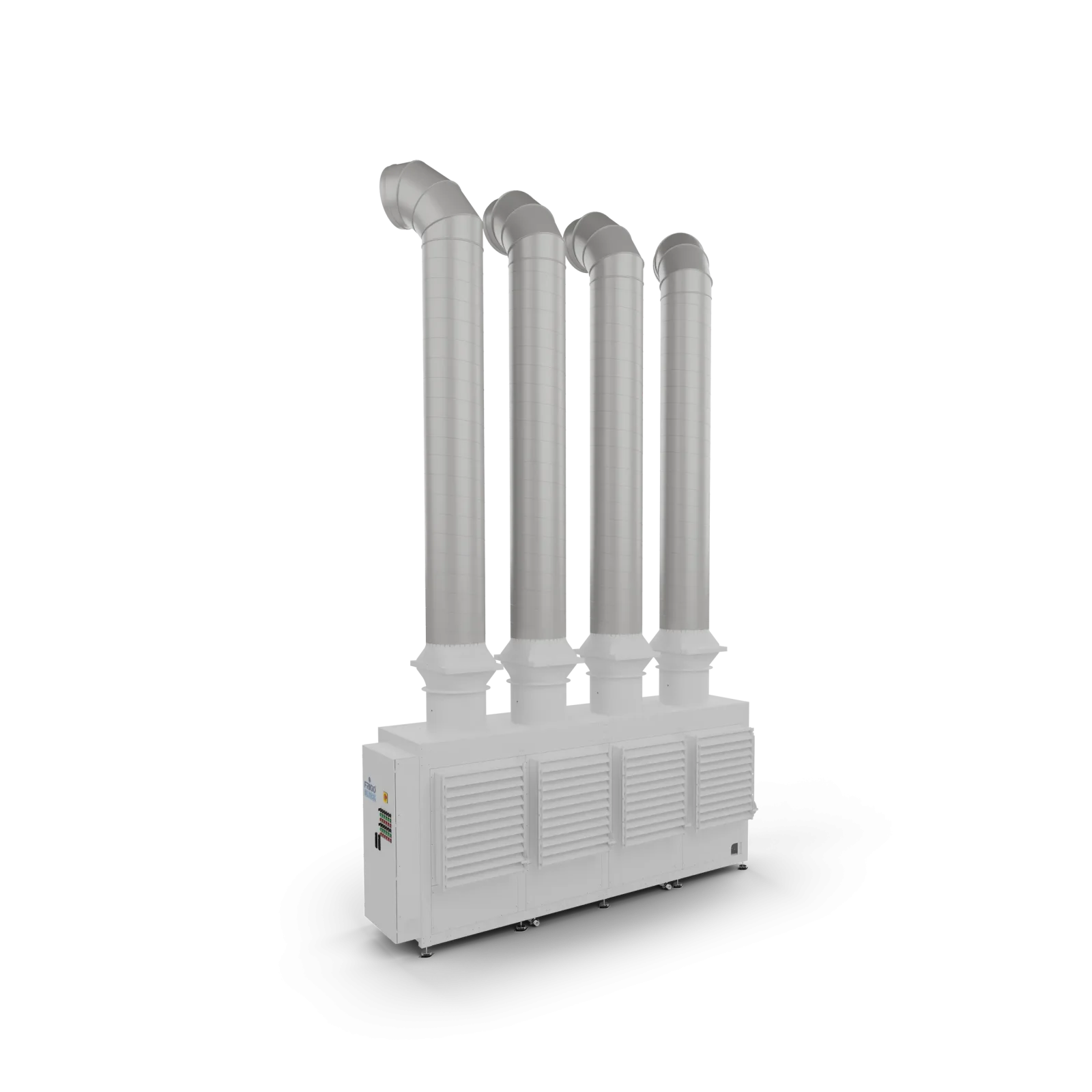

Tuber Crops Storage Units - FRIGO-PAC

Designed for long-term preservation of potatoes, onions, carrots, red beets, ginger, and other tuberous products.
